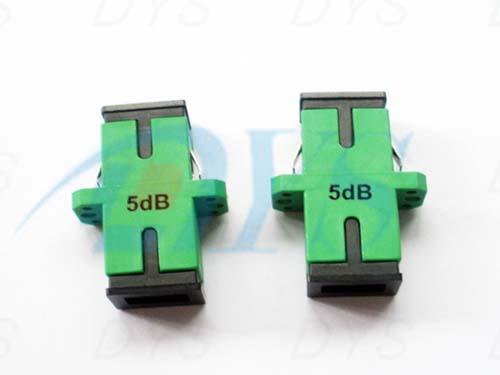

SC / UPC 1dB to 20dB Fixed Type Fiber Optic Attenuator For Passive Optical Networks

Name: SC UPC 1dB to 20dB Fixed Type Fiber Optic Attenuator For Passive Optical Networks
Brand: DYS/OEM
Price: 1 USD

Wholesale SC / UPC 1dB to 20dB Fixed Type Fiber Optic Attenuator For Passive Optical Networks from china suppliers

Place of Origin : Shenzhen（China）

Brand Name : DYS/OEM

Certification : IS09001-2015.ROHS

Model Number : SC

MOQ : Negotiable

Price : Negotiable

Packaging Details : Individual box or according to customer's request

Delivery Time : 3-5 work days

Payment Terms : L/C,T/T

Supply Ability : 500000PCS / Month

Contact Now

SC / UPC 1dB to 20dB Fixed Type Fiber Optic Attenuator For Passive Optical Networks

Quick Details:

1.Aplication

• Passive optical networks

• Overpowered fiber optic systems

• Optical power receivers protection

• Multiwavelength systems balancing

• EDFA loop tests and measurements

2. Feature

• Metal ion doped fiber

• Attenuation levels ranging from 1 dB to 20 dB

• Low back reflection

• High power endurance

• Maximum stability, reliability and flat spectral response

• 100% IL, RL and visual inspection tested

• Easy to connect/disconnect (RJ latch)

• High mechanical resistance

3. Specification

Parameter	Value	Unit
Operating Wavelength	1310/1550 ± 10	nm
Tolerance for 1~5 dB Attenuation	± 0.5	dB
Tolerance for 6~30 dB Attenuation	± 10	%
Return Loss	> 50	dB
Operating Temperature	-40 to +75	C
Polarization Dependent Loss	< 0.1	dB
Mating Durability	>1000	cycle

SC / UPC 1dB to 20dB Fixed Type Fiber Optic Attenuator For Passive Optical Networks

Competitive Advantage

DYS strictly enforce the ISO9001 quality management system, companies with good facilities and qualified human resources management to ensure product quality stability and excellent performance; and good after-sales service, to win the trust of customers, products exported to Europe and the United States and Southeast Asian countries.
